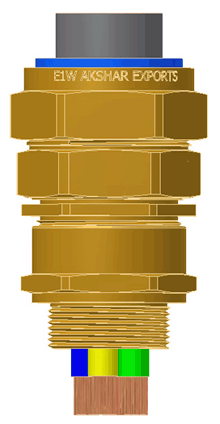

E1W Cable Gland

E1W Cable Gland Cable Gland E1W

Size:20 mm to 90 mm & 3/4" to 3"

Standard:EN 50262: 1999

Application:For Indoor or outdoor use with all types of SWA extruded Bending Cable

Function:Providing environmental seal on both the Cable Inner & Outer Sheaths. Also provides mechanical retention & electrical continuity via armoured wire termination

Ingress:IP66

Protection Material:Brass BS 2874

Thread:BSP & NPT

Operating Temp.:-20° C to + 80° C

Cable Type:SWA extruded bending cable

Accessories:Shroud, Earth Tag & Washer, Lock Nut

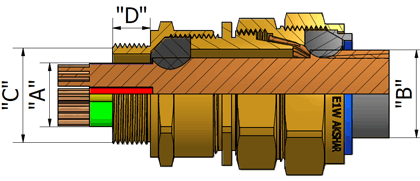

All Dimensions are in mm

Gland Size	Thread Size "C"		Thread Length "D"	Cable Dimension			A/F	A/C
Gland Size	Metric	Inch	Thread Length "D"	A	B	Armoured Wire Diameter "T"	A/F	A/C
E1W-20 S	20	3/4"	10	12.50	17.00	0.90-1.25	24.00	28.50
E1W-20 L	20	3/4"	10	14.40	20.50	0.90-1.25	27.00	31.30
E1W-25 S	25	1"	10	17.80	23.80	1.25-1.60	31.00	34.00
E1W-25 L	25	1"	10	20.40	27.00	1.25-1.60	34.30	38.50
E1W-32 S	32	1 ¼"	10	26.50	33.00	1.60-2.00	41.50	46.50
E1W-32 L	32	1 ¼"	10	26.50	33.00	1.60-2.00	41.50	46.50
E1W-40 S	40	1 ¼"	15	31.00	37.00	1.60-2.00	45.00	50.00
E1W-40 L	40	1 ¼"	15	32.50	40.80	1.60-2.00	49.00	54.00
E1W-50 S	50	2"	15	37.80	48.00	2.00-2.50	58.00	65.00
E1W-50L	50	2"	15	44.00	53.50	2.00-2.50	62.30	69.50
E1W-63 S	63	2 ¼"	15	50.50	56.50	2.00-2.50	70.00	78.00
E1W-63 L	63	2 ¼"	15	56.50	65.50	2.00-2.50	76.30	85.00
E1W-75 S	75	3"	15	62.50	72.00	2.50-3.20	85.00	95.00
E1W-75 L	75	3"	15	67.50	78.50	2.50-3.20	90.00	99.00
E1W-90	90	3 ¼"	20	80.00	94.00	2.50-3.20	112.00	125.00

We Manufacture and Export High Quality Brass Cable Glands type E1W exactly as per Customer Specifications, Drawing & Requirement.
