Alco Cable Gland
Size: G204 to G755
Standard: BS 6121-1-2005
Application:Dry Indoor, For Use With all types of SWA extruded Bending, Plastic & Rubber Sheathed Cables
Function:Provides mechanical Cable retention & electrical continuity via armoured wire termination
Protection Material:Brass BS 2874
Thread:ISO Metric, BSP & NPT
Operating Temp.:-80° C to + 300° C
Accessories:Shroud & Earth Tag and Lock Nut
Treatment:Nickel Plated Brass
All Dimensions are in mm

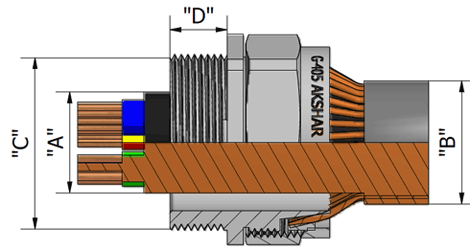

| Size | Thread Size “C” | Minimum Length Of Thread “D” |
Cable Range | A/F | A/C | |||
| MM | INCH | MAX ‘A’ | MAX ’B’ | Armour Wire Dia | ||||
| G-204 | 20 | ¾” | 10 | 13.00 | 18.00 | 0.9-1.25 | 23.50 | 26.00 |
| G-206 | 20 | ¾” | 10 | 14.00 | 21.00 | 0.9-1.25 | 25.00 | 28.00 |
| G-254 | 25 | 1” | 10 | 18.00 | 24.00 | 1.25-1.60 | 31.0 | 35.50 |
| G-256 | 25 | 1” | 10 | 20.50 | 27.00 | 1.25-1.60 | 33.00 | 37.00 |
| G-324 | 32 | 1 ¾” | 10 | 27.00 | 33.50 | 1.60-2.00 | 40.50 | 45.50 |
| G-326 | 40 | 1 ½” | 15 | 31.50 | 39.50 | 1.60-2.00 | 45.50 | 50.50 |
| G-405 | 40 | 1 ½” | 15 | 33.50 | 41.50 | 1.60-2.00 | 49.00 | 55.00 |
| G-503 | 50 | 2” | 15 | 39.50 | 48.50 | 2.0-2.50 | 56.50 | 63.50 |
| G-505 | 50 | 2” | 15 | 44.50 | 54.50 | 2.0-2.50 | 62.50 | 70.50 |
| G-636 | 63 | 2 ½” | 15 | 50.20 | 65.60 | 2.50 | 68.80 | 77.50 |
| G-753 | 75 | 3” | 15 | 63.50 | 72.00 | 2.50 | 84.00 | 94.00 |
| G-755 | 75 | 3” | 15 | 69.50 | 78.50 | 2.5-3.15 | 90.00 | 101.00 |
We Manufacture and Export High Quality Alco Cable Glands exactly as per Customer Specifications, Drawing & Requirement.
