A2 Cable Gland

A2 Cable Gland Brass Cable Glands A2

Size: 16mm to 90mm & 3/4" to 3½"

Standard:BS 6121 - 1 - 2005

Application: For Indoor or outdoor use with all types of unarmoured cable

Function:providing seal on outer sheaths of the unarmored cable

Ingress:IP66

Protection Material:Brass BS 2874, Nickle Plated Brass

Thread:BSP & NPT

Operating Temp.:-20° C to + 80° C

Accessories:Shroud, Earth Tag, Lock Nut and Serrated Washer and Entry Thread Seal

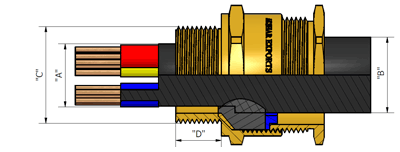

All Dimensions are in mm

Size	Thread size “C”			Thread Length “D”	Cable dimension		A/F	A/C	Product Code
Size	Metric	BSP	NPT	Thread Length “D”	A Min	B Max	A/F	A/C	Product Code
A2-16	16	5/8”	½”	15.00	3.10	8.60	21.00	23.00	AA2-16
A2-20 S	20	¾”	½”	15.00	6.10	11.60	24.00	26.50	AA2-20S
A2-20	20	¾”	½”	15.00	6.50	13.90	27.00	30.00	AA2-20
A2-25	25	1”	3/4”	15.00	11.10	19.90	36.00	39.75	AA2-25
A2-32 L	32	1 ¼”	1”	15.00	17.00	26.15	41.00	46.00	AA2-32
A2-40	40	1 ½”	1 ¼””	15.00	22.00	32.10	49.25	55.00	AA2-40
A2-50 S	50	2”	1 ½”	15.00	29.80	38.10	54.75	61.30	AA2-50S
A2-50	50	2 ”	1 ½”	15.00	36.90	43.30	60.00	66.50	AA2-50
A2-63 S	63	2 ½”	2 ”	15.00	42.20	49.90	70.25	77.50	AA2-63S
A2-63	63	2 ½”	2 ”	15.00	48.30	54.90	74.75	83.00	AA2-63
A2-75 S	75	3”	2 ½”	15.00	54.20	62.00	80.00	89.00	AA2-75S
A2-75 L	75	3”	2 ½”	15.00	59.80	66.90	84.00	94.00	AA2-75
A2-90	90	3 ½”	3”	15.00	66.60	79.30	107.00	119.70	AA2-90

We Manufacture and Export High Quality Brass Cable Glands A2 Part Type exactly as per Customer Specifications, Drawing & Requirement.
