BWF Cable Gland
Size:20 mm to 90 mm & 3/4" to 3½ "
Standard: BS 6121 - 1 - 2005
Application: Dry Indoor, For use with all types of SWA extruded Bending Cable
Function: Providing mechanical cable retention & electrical continuity via armoured wire termination
Ingress:IP2X EN 60529
Protection Material: Brass BS 2874
Thread:BSP & NPT
Operating Temp.:-80° C to + 300° C
Cable Type: SWA Extruded Bending Cable
Accessories:Shroud & Earth Tag, Lock Nut

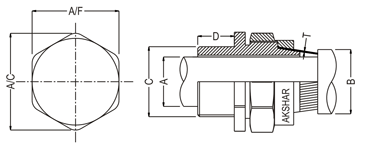

All Dimensions are in mm
| Gland Size | Thread Size "C" | Thread Length "D" | Cable Dimension | A/F | A/C | |||
| Metric | Inch | A | B | Armoured Wire Diameter "T" |
||||
| BW-20 S | 20 | 3/4" | 10 | 13.00 | 15.50 | 0.9-1.25 | 22.00 | 24.40 |
| BW-20 L | 20 | 3/4" | 10 | 14.00 | 18.50 | 0.9-1.25 | 23.85 | 27.30 |
| BW-25 L | 25 | 1" | 10 | 20.50 | 26.00 | 1.25-1.60 | 34.00 | 37.50 |
| BW-32 L | 32 | 1 ¾" | 10 | 27.00 | 33.90 | 1.60-2.00 | 40.60 | 45.60 |
| BW-40 L | 40 | 1 ½" | 15 | 33.00 | 41.50 | 1.60-2.00 | 52.30 | 58.50 |
| BW-50 S | 50 | 2" | 15 | 38.50 | 47.00 | 2.00-2.50 | 55.50 | 63.50 |
| BW-50 L | 50 | 2" | 15 | 44.00 | 52.00 | 2.00-2.50 | 64.70 | 72.50 |
| BW-63 S | 63 | 2 ½" | 15 | 51.00 | 59.20 | 2.50 | 73.75 | 83.00 |
| BW-63 L | 63 | 2 ½" | 15 | 56.80 | 65.50 | 2.50 | 78.50 | 87.75 |
| BW-75 S | 75 | 3" | 15 | 63.00 | 74.00 | 2.50 | 90.00 | 100.00 |
| BW-75 L | 75 | 3" | 15 | 68.50 | 79.50 | 2.50-3.15 | 95.00 | 105.00 |
We Manufacture and Export High Quality Brass Cable Glands type BW2 exactly as per Customer Specifications, Drawing & Requirement.
