CW Cable Gland

CW4 Cable Gland Brass Cable Glands CW

Size: 20 mm to 90 mm & 3/4" to 3½ "

Standard: BS 6121 - 1 - 2005

Application:For Indoor or outdoor use with all types of SWA extruded Bending Cable

Function:Providing environmental seal on both the cable inner & outer sheaths. Also provides mechanical cable retention & electrical continuity via armoured wire termination

Ingress:IP66

Protection Material:Brass BS 2874

Thread:BSP & NPT

Operating Temp.:20° C to + 80° C

Cable Type:SWA Extruded Bending Cable

Accessories:Shroud & Earth Tag, Lock Nut

All Dimensions are in mm

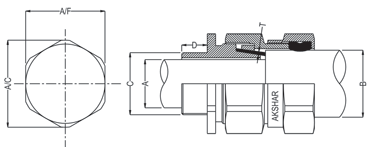

Gland Size	Thread Size "C"		Thread Length "D"	Cable Dimension			A/F	A/C
Gland Size	Metric	Inch	Thread Length "D"	A	B	Armoured Wire Diameter "T"	A/F	A/C
CW-20 S	20	3/4"	10	11.80	17.80	0.9-1.25	24.00	27.00
CW-20 L	20	3/4"	10	14.00	20.80	0.9-1.25	27.70	31.00
CW-25 S	25	1"	10	18.00	24.00	1.2-1.60	31.50	35.00
CW-25 L	25	1"	10	20.30	27.40	1.2-1.60	35.00	39.00
CW-32 S	32	1 ¼"	10	24.50	31.00	1.60-2.00	43.00	47.50
CW-32 L	32	1 ¼"	10	26.50	34.20	1.60-2.00	43.00	47.50
CW-40 S	40	1 ½"	13	30.40	38.50	1.60-2.00	51.50	57.00
CW-40 L	40	1 ½"	13	33.20	41.00	1.60-2.00	51.50	57.00
CW-50 S	50	2"	13	40.00	47.00	2.00-2.50	58.50	65.00
CW-50 L	50	2"	13	44.00	53.50	2.00-2.50	66.00	73.00
CW-63 S	63	2 ½"	14	50.00	59.00	2.50	72.00	80.00
CW-63 L	63	2 ½"	13.50	56.00	66.00	2.50	80.00	89.00
CW-75 S	75	3"	15	62.00	72.00	2.50	86.50	97.00
CW-75 L	75	3"	15	69.00	79.00	2.50	94.00	105.00
CW-90 S	90	3 ½"	20	76.00	86.00	2.50-3.15	106.00	118.00
CW-90 L	90	3 ½"	20	79.00	90.00	2.50-3.15	106.00	118.00

We Manufacture and Export High Quality Brass Cable Glands type CW4 exactly as per Customer Specifications, Drawing & Requirement.
