BWR Rotary Cable Gland
Size: BWR o to BWR 7
Application: Dry Indoor and outdoor, for use with all types of SWA extruded Bending Cable
Function:Providing mechanical cable retention & electrical continuity via armored wire termination and protect armour wire.
Features:Easy to install, Rotary cone, Highly Nickle Plated
Operating Temp.:-20° C to + 80° C
Material:Nickel Plated Brass
Accessories:Lock Nut, Earth Tag, Shroud

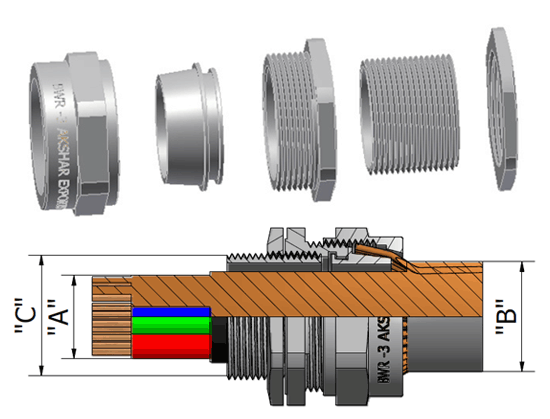

All Dimensions are in mm
| Gland Size | Thread “C” | Cable Dimension | A/F | A/C | Product Code | |
| Mini “A” | Max “B” | |||||
| BWR-0 | M20 | 11.80 | 16.00 | 22.00 | 25.00 | ABWR-0 |
| BWR-1 | M20 | 14.00 | 21.20 | 27.00 | 30.00 | ABWR-1 |
| BWR-2 | M25 | 20.20 | 27.00 | 35.00 | 39.25 | ABWR-2 |
| BWR-3 | M32 | 26.20 | 33.40 | 41.00 | 45.00 | ABWR-3 |
| BWR-4 | M40 | 32.50 | 39.80 | 51.50 | 58.00 | ABWR-4 |
| BWR-5 | M50 | 44.40 | 52.50 | 64.50 | 71.50 | ABWR-5 |
| BWR-6 | M63 | 55.30 | 65.50 | 79.78 | 88.00 | ABWR-6 |
| BWR-7 | M75 | 69.50 | 79.00 | 94.75 | 105.75 | ABWR-7 |
We Manufacture and Export High Quality Brass Cable Glands A2 Part Type exactly as per Customer Specifications, Drawing & Requirement.
