BW Cable Gland

BW Cable Gland

Size: 20 mm to 90 mm & 3/4" to 3½"

Standard: BS 6121 - 1 - 2005

Application:Dry Indoor, For use with all types of SWA extruded Bending Cable

Function:Provides mechanical cable retention & electrical continuity via armoured wire termination

Ingress:IP2X EN 60529

Protection Material:Brass BS 2874

Thread:BSP & NPT

Operating Temp.:-80° C to + 300° C

Cable Type:SWA Extruded Bending Cable

Accessories:Shroud & Earth Tag, Lock Nut

All Dimensions are in mm

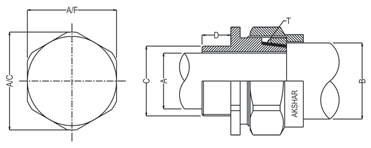

Gland Size	Thread Size "C"		Thread Length "D"	Cable Dimension			A/F	A/C
Gland Size	Metric	Inch	Thread Length "D"	A	B	Armoured Wire Diameter "T"	A/F	A/C
BW-20 S	20	3/4"	10	13.00	18.00	0.9-1.25	23.50	26.00
BW-20 L	20	3/4"	10	14.00	21.00	0.9-1.25	25.00	28.00
BW-25 S	25	1"	10	18.00	24.00	1.25-1.60	31.00	35.50
BW-25 L	25	1"	10	20.50	27.00	1.25-1.60	33.00	37.00
BW-32 S	32	1 ¾"	10	27.00	33.50	1.60-2.00	40.50	45.50
BW-32 L	32	1 ¾"	10	27.00	33.50	1.60-2.00	40.50	45.50
BW-40 S	40	1 ½"	13	31.50	39.50	1.60-2.00	45.50	50.50
BW-40 L	40	1 ½"	13	33.50	41.50	1.60-2.00	49.00	55.00
BW-50 S	50	2"	13	39.50	48.50	2.00-2.50	56.50	63.50
BW-50 L	50	2"	13	44.50	54.50	2.00-2.50	62.50	70.50
BW-63 S	63	2 ½"	14	50.20	59.20	2.50	68.80	77.00
BW-63 L	63	2 ½"	13.50	56.50	65.60	2.50	76.00	86.00
BW-75 S	75	3"	15	63.50	72.00	2.50	86.00	94.50
BW-75 L	75	3"	15	69.50	78.50	2.50-3.15	90.00	101.00
BW-90 S	90	3 ½"	20	76.00	85.00	3.15	100.00	111.50
BW-90 L	90	3 ½"	18	78.40	90.50	3.15	103.00	115.00

We Manufacture and Export High Quality Brass Cable Glands type BW4 exactly as per Customer Specifications, Drawing & Requirement.
